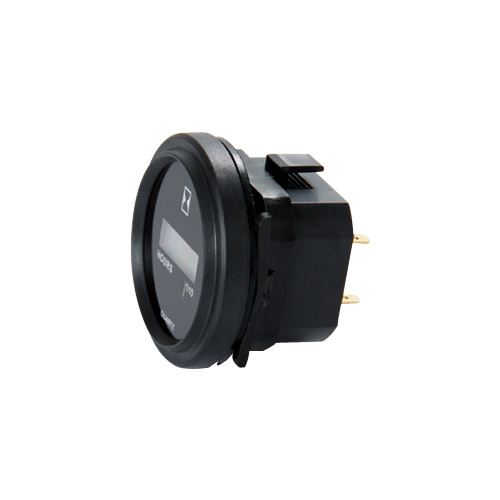

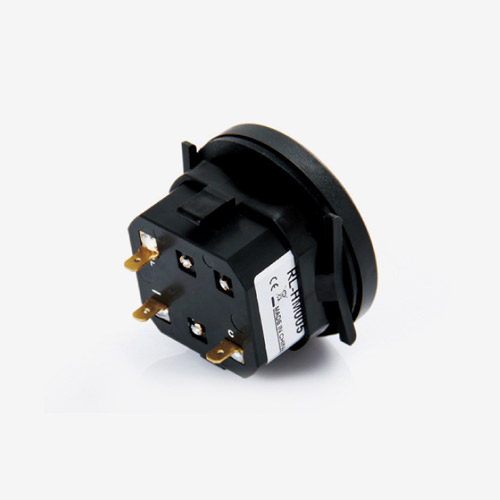

The RICO Round LCD Digital Hour MeterResettable LCD Hour meter can work on most any DC device. It has a powerful timing system and some other unique design.

  • Voltage supply:DC4.5-90V
  • Max Hours:99999.9
  • Resolution 0.1 hour
  • Reset optional
  • Total time is resettable

INQUIRY
PREV NEXT BACK
  • Product Description
  • Product Specification
  • Q&A

Product Number

B02-H005

Product description

Round LCD Digital Hour Meter

Features

Light weight, power saving mode, wireless, easy installation. Track the service interval of your vehicle – engine hour, oil changes, valve, adjustments, spark plugs, etc.

Installation

Put the hour meter in to mounting hole, and use the sanp joint to fasten the meter.

(Battery: CR2050/ 410mAh)。

Function

Low Power Consumption
Meticulous PCB Design
Power saving mode Power off to if no operation activity for 15 seconds

Timing system including: cumulative total running time

Unique design including: waterproof IP68

Application

Motorcycle, trucks, race cars, boats, golf carts, forklifts, RV's, off road vehicles, karting, etc.

Place of origin

Taiwan


Mechanical:

Color

Black

Resolution

0.1H

Display range

999999 with running indicator(Automatically reycle to 0)

Dimension


58.4mm (cut-off diameter) x 37mm (depth)

Weight

52g



Industrial Standard:

Certification

CE, FCC

Ingress Protection Ratings (IP)

IP65



Electrical:

Operating voltage



DC4.5-90V
AC86-230V
