Brief Introduction

The Fuel Sender with Feed & Return is an all-in-one multi-functional fuel management assembly designed for commercial trucks, generator sets, marine vessels, and heavy equipment. It integrates engine fuel supply (feed), excess fuel return, auxiliary heater lines, an inline suction mesh filter, and a high-accuracy vertical reed-switch level sensor into a single unit. Featuring a quick-install twist-lock bayonet mounting head, it eliminates the need to drill multiple holes in the fuel tank, dramatically reducing assembly labor and leak risks.

Multi-Function Fuel Pickup Sender Assembly with Integrated Filter & Heater Ports

Combining level sensors with suction/return pipes and heater/filter lines is known in the industry as an All-in-One Multi-Functional Fuel Sender Assembly.

Instead of drilling 3 to 5 separate holes in the fuel tank, everything goes through one single mounting flange.

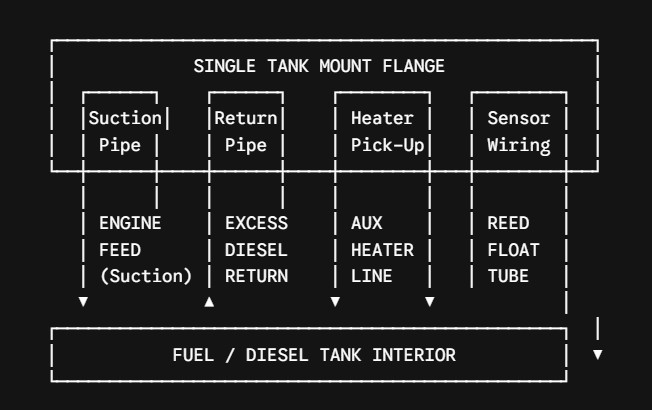

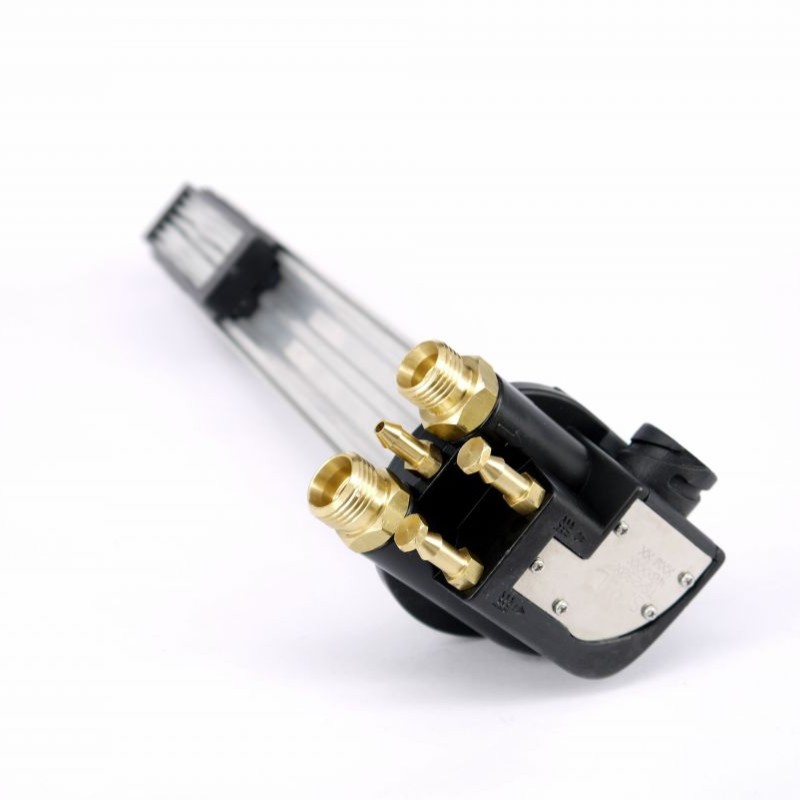

Fuel Sender with Feed & Return-How the Integrated System Works

Use Case: Heavy industrial equipment, off-road machinery, Commercial vehicle diesel tanks, generator sets, Commercial trucks, buses, heavy-duty mobile machinery.



INQUIRY
PREV BACK
  • Product Description
  • Product Feature
  • Product Specification
  • Q&A

Product Description

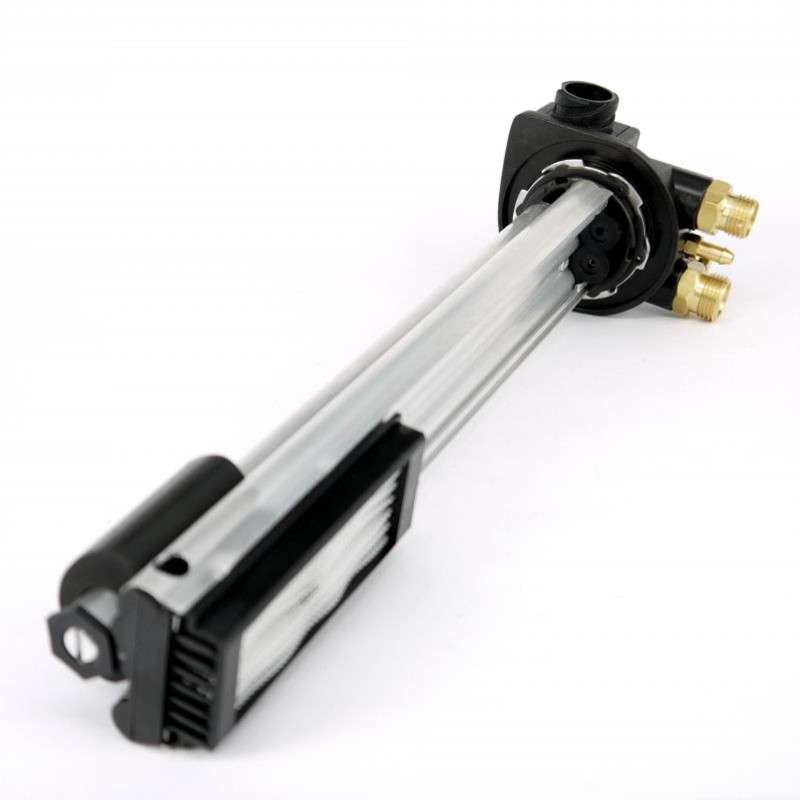

The Fuel Sender with Feed & Return streamlines fuel tank engineering by consolidating liquid level monitoring, fuel delivery, fuel return, auxiliary heater lines, and primary filtration into one single mounting port. Standard individual components require multiple tank penetrations—each creating potential vibration leaks and increasing installation time. This integrated assembly drops directly into standard multi-port tank bayonet openings, providing a robust, vibration-resistant solution for harsh operating environments.

Equipped with a sealed vertical float mechanism operating on a standard 0 to 180 Ohm resistance range (Customizable upon request), the internal reed switches deliver stable fuel level signals without sloshing distortion. Integrated brass ports handle high-flow fuel suction and return directly to the engine while providing secondary pick-up connections for Webasto/Eberspächer cabin heaters. An integrated bottom strainer mesh prevents rust and large sediment from entering fuel lines, protecting downstream pumps and filters.

Integrated Assembly vs. Standard Sensor



Feature / Aspect Integrated Fuel Sender (Feed & Return) Standard Fuel Level Sender
Tank Modification Zero Extra Holes Required Installs directly into existing multi-port bayonet opening. Requires Drilling & Tapping Requires a dedicated hole + 5 screw threads in the tank.
Primary Functions 5-in-1 Design:
● Level Sensing (0-180Ohm)(Customizable upon request)
● Engine Fuel Feed (Suction)
● Engine Excess Fuel Return
● Auxiliary Heater Lines
● Integrated Suction Mesh Filter		 1 Function Only:
● Fuel Level Sensing (0-180hm, 240-30hm)
Installation Time & Labor Fast & Tool-Free Head Mounting Twist-and-lock bayonet design reduces assembly time significantly. Slower Requires aligning gasket, tightening 5 screws individually, plus routing external pick-up tubes separately.

The Fuel Sender with Feed & Return streamlines fuel tank engineering by consolidating liquid level monitoring, fuel delivery, fuel return, auxiliary heater lines, and primary filtration into one single mounting port. Standard individual components require multiple tank penetrations—each creating potential vibration leaks and increasing installation time. This integrated assembly drops directly into standard multi-port tank bayonet openings, providing a robust, vibration-resistant solution for harsh operating environments.

Equipped with a sealed vertical float mechanism operating on a standard 0 to 180 ohm resistance range (Customizable upon request), the internal reed switches deliver stable fuel level signals without sloshing distortion. Integrated brass ports handle high-flow fuel suction and return directly to the engine while providing secondary pick-up connections for Webasto/Eberspächer cabin heaters. An integrated bottom strainer mesh prevents rust and large sediment from entering fuel lines, protecting downstream pumps and filters.

Mechanical:
Material Steel
Fitting Pipes Various Options
Output Signal Resistance (Customization)
Material High Quality Aluminum Alloy
Assembly Bayonet Twist Lock
Application Fuel / Diesel / Bio-Diesel
